What’s a Custom Map?

Uploading a dataset to Einstein Analytics is pretty straightforward. In this step we’ll give you the dataset, but before you upload it, you’ll need to modify it first to connect with your particular Salesforce instance. Don’t worry...we’ll walk you through it step-by-step.

Prepare Your Dataset

A typical dataset in CSV format might look like this:

Australia,aus,South Pacific,1898,22930651
China,chn,East Asia,2051,29754009
Japan,jpn,East Asia,2872,36916012
Russian Federation,rus,East Europe,1847,27387456
South Africa,zaf,Africa,879,9794857
South Korea,kor,East Asia,1643,21934785
United States of America,usa,North America,6527,87044191

To associate each line of data with a matching flag, we’ve added a column to the dataset that contains the URLs to each particular flag. The URLs have this format:


Each specific URL is determined by the base URL of the Salesforce instance your DE org is on, and by the name of the original file. For example, assuming that your instance is NA35, the file with the USA flag has this URL:


The filename at the end of the URL leaves off special characters such as hyphens and periods.

To save you having to figure this out, we’ve prepared a data file for you that includes the URLs— it looks like this:

Australia,aus,South Pacific,https://c.<instance>,1898,22930651
China,chn,East Asia,https://c.<instance>,2051,29754009
India,ind,Asia,https://c.<instance>,2721,32037499                                                                    Italy,ita,Europe,https://c.<instance>,1722,26340986
Japan,jpn,East Asia,https://c.<instance>,2872,36916012
Russian Federation,rus,East Europe,https://c.<instance>,1847,27387456South Africa,zaf,Africa,https://c.<instance>,879,9794857
South Korea,kor,East Asia,https://c.<instance>,1643,21934785
United States of America,usa,North America,https://c.<instance>,6527,87044191

Now you’ll prepare the file for uploading to your DE org:

  1. Click  here to download the data file. The data file is a text file in CSV format.
  2. Check the URL for your DE org to see which instance it’s using.
  3. Open the data file and replace each occurrence of <instance> with the name of your DE org’s instance. For example, if your DE org’s base URL is “”, then replace <instance> with “na35”.
  4. Save the data file as a text file with the extension .csv.

Create an Analytics Dataset

Next you’ll create a new dataset in Einstein Analytics:

  1. In your salesforce org, in the navigation, click Analytics Studio.
  2. Click Create and select Dataset.
  3. Click CSV for the data source, then click Continue.
  4. Create a new dataset:
    1. Under Add External Data File (CSV) click Select file or drag file here...  for CSV files.
    2. Select the CSV data file that you modified and click Open.
    3. For Dataset Name, enter:  worldwide_sales_with_flags and click Next.
      analytics create dataset
    4. In Edit Field Attributes, click Next, then click Got It to complete the upload and create the new dataset.

To navigate to your datasets, click Browse All, then click Datasets.



It can take a few seconds for your dataset to appear on this page. Give it several seconds. When the dataset is ready, it will appear in the list of datasets.

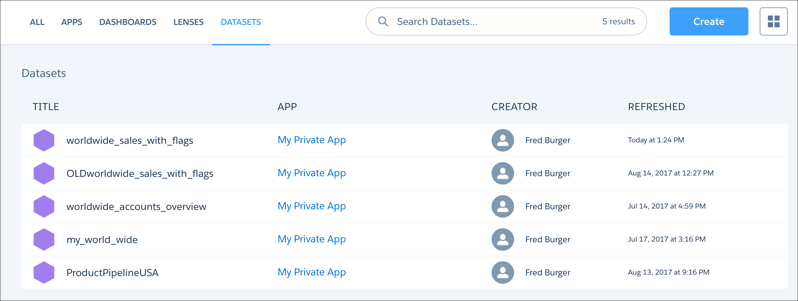

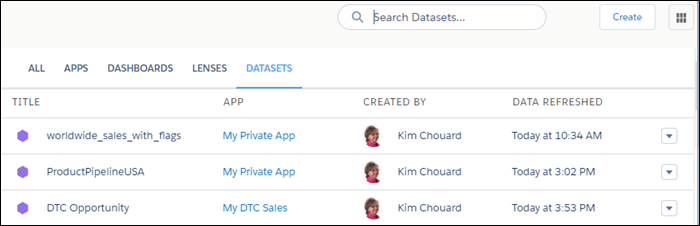

analytics home dataset list

Your dataset is now ready to use. Next, you’ll create an amazing gauge chart to highlight what your data has to say.
