Create a Flow

The last business rule functionality to implement before testing your application is a rule to set the Out-of-State checkbox field on the Travel Approval object if out-of-state travel has been chosen. Salesforce offers workflow capabilities that provide a declarative, drag-and-drop design environment to build our business process logic.

Get Started with Flow Builder

You may have heard several terms used interchangeably when referring to flows. As a reminder, the official terms are:

• Salesforce Flow—The product that encompasses building, managing, and running flows and processes.

• Flow Builder—A point-and-click tool for building flows.

• Flow—An application that automates a business process by collecting data and doing something in your Salesforce org or an external system.


In short, the Salesforce Flow product includes a couple of tools. One of them, Flow Builder, lets you create flows.

Flow Building Blocks

Every flow is made up of three building blocks.

• Elements (1) appear on the canvas. To add an element to the canvas, drag it there from the toolbox.

• Connectors (2) define the path that the flow takes at run time. They tell the flow which element to execute next.

• Resources (3) are containers that represent a given value, such as field values or formulas. You can reference resources throughout your flow. For example, look up an account’s ID, store that ID in a variable, and later reference that ID to update the account.


Now, create a flow that uses the update record node to set the out-of-state flag.

1. From Setup, click the Home tab.

2. Select Process Automation | Flows (or use the Quick Find and search for flows).


3. Click New Flow.

4. Select Record-Triggered Flow then click Create.

5. Enter these values:


6.

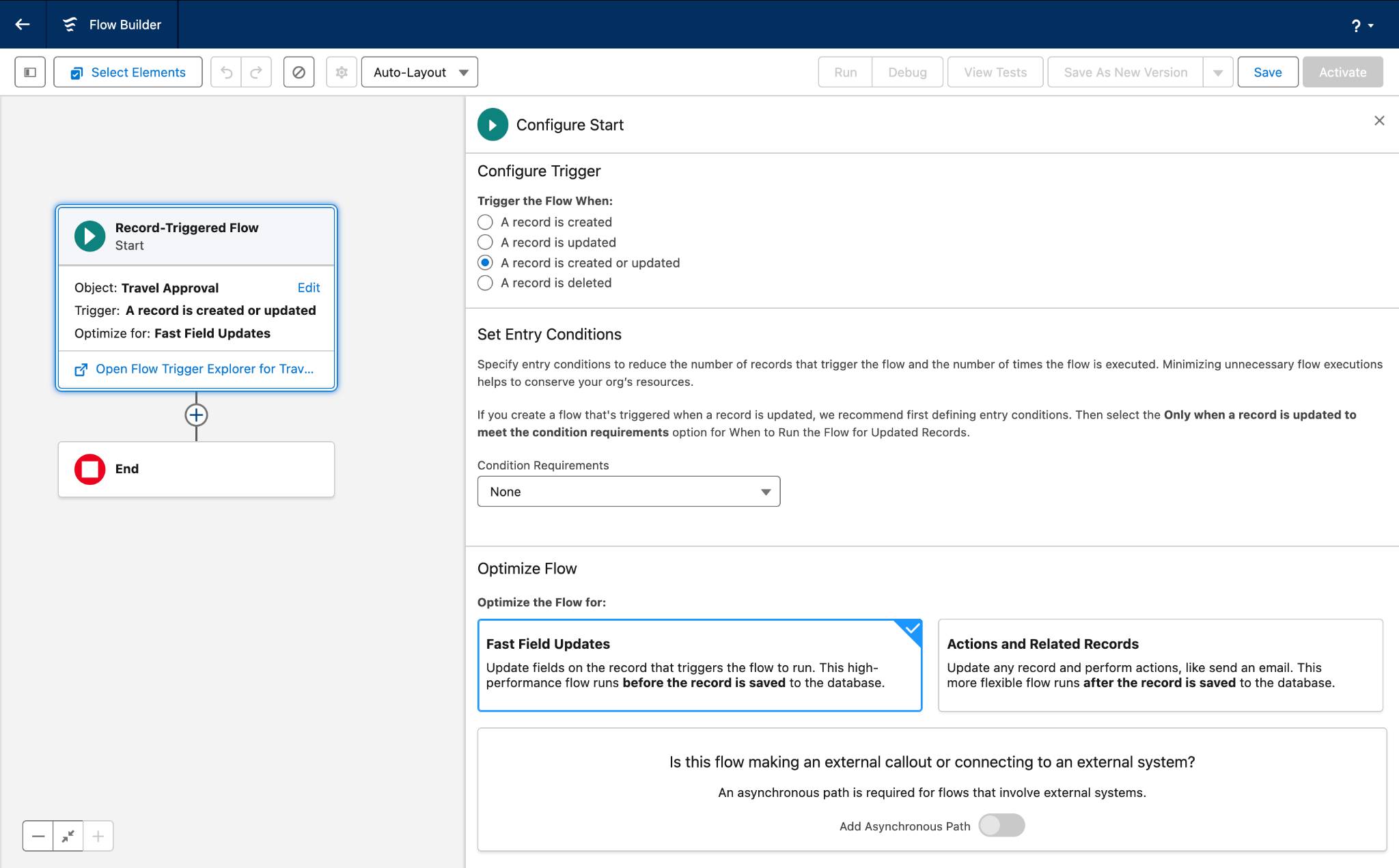

   The Configure Start screen should look like this:


6. In the Layout dropdown, select Freeform.

Add a Decision Element

1. From the left-hand toolbox column, drag a Decision element onto the flow builder screen.

2. Set the following parameters:


3.
   Set the Outcomes.

4. For the first outcome, set these parameters:


5.

   Your Edit Decision Screen should look like this:

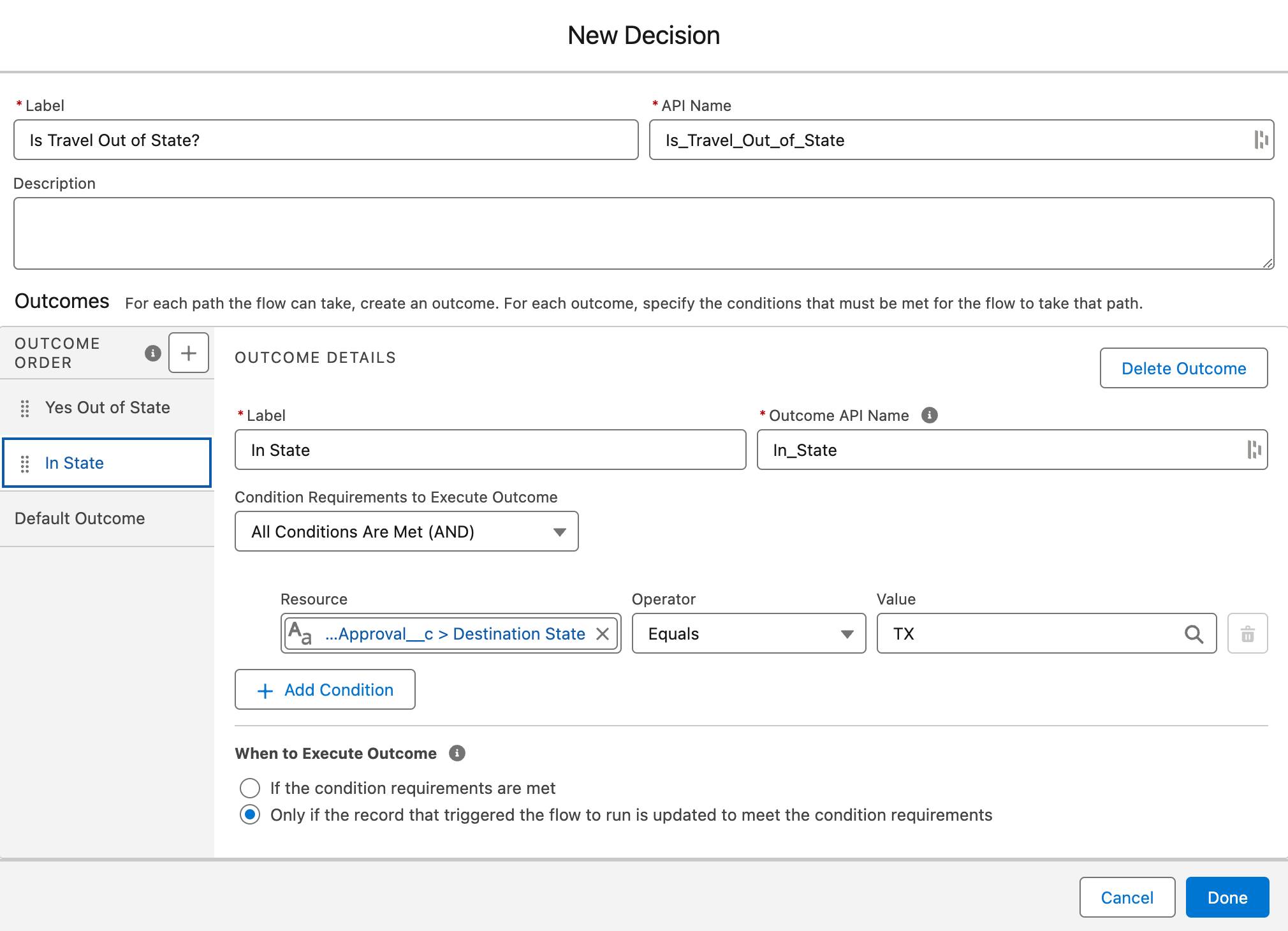

6. Next to Outcome Order click the + button to add another outcome.

7. Set these parameters:


8.
   Click Done.


9. Drag the white circle from the Start Flow element to the Decision element you just created to link the direction of the arrow.


Create an Action for the Flow Using Update Records Elements

1. From the left-hand column, the flow toolbox, drag an Update Records element onto the flow screen.

2. Set the parameters for the element:


3. Click Done.

4. Drag the white circle from the Decision Node to the Update Records you just created, and select the decision Yes Out of State | Done.To save time, you can simply duplicate the Update Records element you just created and update the criteria.

5. Click the Update Records node and make sure it is highlighted in blue. In the top-left corner of the Flow Builder screen, find the and click the duplicate button . Double-click on the new Update Records element just created. Note the API name has been automatically updated to Update_Travel_Approval_Record_0.

6. Then update the Value of the Out_of_State__c field to FALSE.

7. Delete the True Value and enter False. Select $GlobalConstant.False.

8. Click Done.

9. Drag the white circle from the Decision Node to the second Update Records you just created and select the decision In State.


Congratulations!! You’ve completed your first Record Triggered Automation Flow! Last but not least, make sure to save and activate the flow.

1. Click Save.

2. Flow Label: Out of State Travel Flag. Flow API Name will auto populate to Out_of_State_Travel_Flag. Leave Description blank and advanced settings as is.

3. Click Save.

4. Click Activate.


Your flow is now active and you are officially an automation expert!

Flow is a powerful tool that you use to automate many actions within your Salesforce Applications. Next, learn how to build an approval process for any Salesforce record.
