Query Data with SQL

Learning Objectives

After completing this unit, you’ll be able to:

  • Define SQL and why it is used.
  • Use SQL within Marketing Cloud Engagement.
  • Identify best practices for using SQL.

What Is SQL?

You’ve moved in to Marketing Cloud Engagement, unpacked, and even started to arrange your space. Now for the finishing touches. As we mentioned earlier, Marketing Cloud Engagement data extensions and Contact Builder use a relational database. So, you need a good way to get to all of that rich data. Enter: Structured Query Language (or SQL), a domain-specific language that can do just that. In Marketing Cloud Engagement, an SQL query activity is used to execute queries and retrieve data for reporting or segmenting audiences.

Use SQL in Marketing Cloud Engagement

First, let’s review how a few specific SQL commands are used in Marketing Cloud Engagement.

  • SELECT: command to locate data on a database
  • FROM: location where data reside within Marketing Cloud Engagement (usually a data extension)
  • JOIN: allows the query to search multiple tables and/or data extensions
  • WHERE: used to filter out data you do/don’t want

Here’s an example.

SELECT emailaddress as ‘Email_Address’, favoritecolor as ‘Favorite_Color’
FROM [MasterData Extension] m
INNER JOIN JuneMarketingSend j
ON m.emailaddress = j.emailaddress
WHERE m.emailaddress is not NULL

Need a translation? Running this query retrieves email and favorite color from the master data extension, and joins it with any matching email addresses from the June marketing send. Additionally, it only returns emails that are not missing. Also notice the m and the j. These are SQL aliases that are used to give a table, or a field in a table, a temporary name. This is especially helpful when you have a common field name between data extensions, like CustomerID or EmailAddress. You can also see it written like the following.

SELECT o.OrderID, o.OrderDate, c.CustomerName
FROM Customers AS c, Orders AS o
WHERE c.CustomerID=o.CustomerID
Note

SQL commands are not case sensitive: select is the same as SELECT.

SQL Data Views

System data views are Salesforce-created queries that you can use to find information about your subscribers. Just remember, you won’t be able to make changes to these precreated data views. Here are some of the most commonly used views.

Data View
Query
Information
Bounce
_bounce
Identify and then suppress commonly bounced email addresses from sends.
Click and  Open
_Click

_Open
Query these data views in Automation Studio to view click and open data for emails from your Marketing Cloud Engagement account.
Helps to identify additional messaging opportunities by indicating subscriber engagement on a specific JobID.
Complaint
_Complaint
Query this data view in Automation Studio to view complaints data related to emails from your Marketing Cloud Engagement account.
Use to prune your lists to ensure more accurate audiences and improve deliverability.
Journey
_Journey
Find a journey's status, created and last modified date, and other general journey information using this Journey Builder data view.
Note

Click and open tracking data displays in Central Standard Time, does not observe Daylight Savings Time, and is rounded to the nearest second.

So how do you use these data views? First create a data extension to store the data you need from these views, then navigate to Automation Studio to create a query activity based on the desired data view table. After you complete and run the automation, the output is stored in your created data extension.

Here is a query example that pulls data from the complaint data view for the last 6 months and provides SubscriberKey, JobIDs, and Bounce Reasons.

SELECT SubscriberKey,JobID,SMTPBounceReason
FROM _Complaint

Joining Data with SQL

Beyond data views, SQL queries can also be customized to solve for a variety of business needs. Say you want to send an email that has data stored in the send log and data found in your customer data extension. To craft these queries, you’ll want to understand the concept of joins—or taking data from one source and joining it with data from another source.

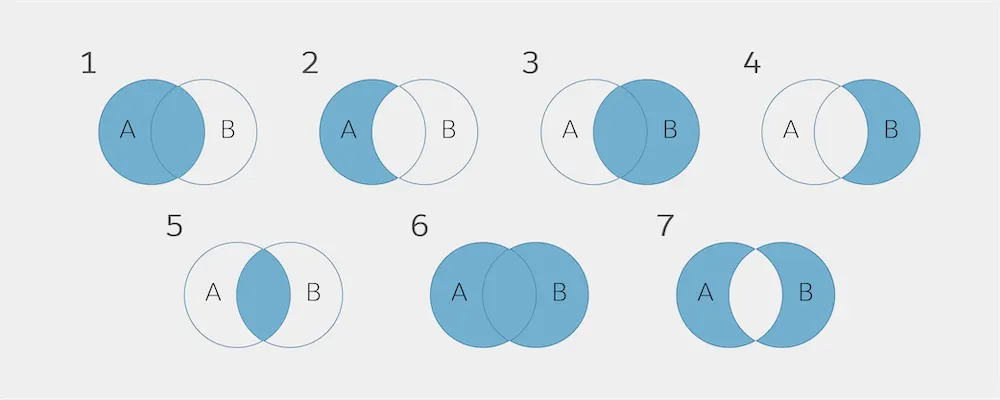

SQL joins can be complex, so let’s review some join scenarios using a Venn diagram.

SQL joins graphic with diagrams 1-7, showing groupings of data from A or B.

Let’s start with the top row, known as the left and right joins.

Diagram 1: Left Outer Join

You want all records from data extension A, plus matching records in the data extension B.

SELECT *
FROM DataExtension A
LEFT JOIN DataExtension B
ON A.Field = B.Field

Sample Result

Data Extension A
Data Extension B
Name
Email
Name
Email
Joe
joe@email.com
Joe
joe@email.com
Jenn
jenn@email.com
null
null
Justin
justin@email.com
null
null

Diagram 2: Left Outer Join with Exclusions

In this join, we exclude the records we don’t want from data extension B.

SELECT *
FROM DataExtension A
LEFT JOIN DataExtension B
ON A.Field = B.Field
WHERE B.Field IS NULL

Sample Result

Data Extension A
Data Extension B
Name
Email
Name
Email
Joe
joe@email.com
null
null
Jenn
jenn@email.com
null
null
Justin
justin@email.com
null
null

Diagram 3 and 4: Right Joins

As for the right joins, they’re the reverse of the previous scenarios.

Diagram Code
3
SELECT *
FROM DataExtension A
RIGHT JOIN DataExtension B
ON A.Field = B.Field
4
SELECT *
FROM DataExtension A
RIGHT JOIN DataExtension B
ON A.Field = B.Field
WHERE A.Field IS NULL

Now let’s look at inner and outer joins.

SQL joins graphic with diagrams 1-7

Diagram 5: Inner Join

This query returns records that have matching values in both data extensions.

SELECT *
FROM DataExtension A
INNER JOIN DataExtension B
ON A.Field = B.Field

Sample Result

Data Extension A
Data Extension B
Name
Email
Name
Email
Joe
joe@email.com
Joe
joe@email.com
Jonathan
jonathan@email.com
Jonathan
jonathan@email.com

Diagram 6: Full Outer Join

Full outer joins return all matching records from both data extensions.

SELECT *
FROM DataExtension A
FULL OUTER JOIN DataExtension B
ON A.Field = B.Field

Sample Result

Data Extension A Data Extension B
Name
Email
Name
Email
Joe
joe@email.com
Joe
joe@email.com
Jenn
jenn@email.com
null
null
Justin
justin@email.com
null
null
null
null
Jennifer
jennifer@email.com
Jonathan
jonathan@email.com
Jonathan
jonathan@email.com

Diagram 7: Outer Join

Returns all matching records from both data extensions, minus the records we don’t want.

SELECT *
FROM DataExtension A
FULL OUTER JOIN DataExtension B
ON A.Field = B.Field
WHERE A.Field IS NULL OR B.Field IS NULL

Sample Result

Data Extension A
Data Extension B
Name
Email
Name
Email
Joe
joe@email.com
null
null
Jenn
jenn@email.com
null
null
Justin
justin@email.com
null
null
null
null
Jennifer
jennifer@email.com
null
null
Jonathan
jonathan@email.com
Note

Be wary of outer joins as they can potentially return very large result sets!

See SQL in Action

Cloud Kicks has decided to send an exclusive offer to customers who have opened an email in the last 6 months and have made a purchase during that time. Solution Architect Maggie Quinn needs to complete this task by using a SQL query. Let’s follow along.

Maggie starts by creating a data extension to store the information about the customers that meet this criteria. She then navigates to Automation Studio and follows these steps.

  1. Click New Automation.
  2. Select a starting source from Schedule or File Drop.
  3. Drag SQL Query to workflow and click Choose. (You can select an existing query or create a new query.)
  4. Select Create New Query Activity.
  5. Add query properties: name, external key, folder location, and description.
  6. Next, build your SQL query.

Maggie uses this query.

SELECT c.EmailAddress, c.CustomerID, c.First_Name
FROM Customers c
INNER JOIN Purchases p
ON c.CustomerID = p.CustomerID
WHERE [Purchase Date] > DateAdd(month, -6, GetDate()) AND [Open Date] > DateAdd(month, -6, GetDate())
Note

Data extensions and field names with spaces in their names need to be enclosed in [  ] brackets.

Once completed, she follows the remaining steps.

  1. Click Validate Syntax.
  2. Choose the data extension created to store the query results.
  3. Choose the data action the query activity performs: Append, Update, or Overwrite.
  4. Click Save.

Once she is ready, Maggie can run the automation.

Common SQL Queries

Parent Accounts

You can query data extensions in the Shared Data Extension folder from the parent account by adding the prefix ent. to the data extension name in the query.

SELECT EmailAddress
FROM ent.MasterDataExtension

All the Data

Sometimes you want everything.

SELECT *
FROM MasterDataExtension

Use SELECT * very carefully as this can cause slowness in the system as it is processing a large amount of data. The larger the dataset, the greater time and effort the system has to use to obtain the data. Queries time-out after 30 minutes, and the more data to process, the more likely the query can time out. To help with this, it is more effective to provide the exact fields you are looking for in the query.

SELECT field1, field2, field3
FROM MasterDataExtension

SQL is something you can spend years mastering, but for now, you have the basics. We hope you—and your data—are feeling settled in your new home. And we can’t wait to see what you achieve with the power of your Marketing Cloud Engagement data!
