Track Customer Assets

Lightning bolt icon used to indicate that the content is for Lightning Experience

Attention, Trailblazer!

Salesforce has two different desktop user interfaces: Lightning Experience and Salesforce Classic. This module is designed for Lightning Experience.

You can learn about switching between interfaces, enabling Lightning Experience, and more in the Lightning Experience Basics module here on Trailhead.

Learning Objectives

After completing this unit, you’ll be able to:
  • Create assets in Salesforce to represent customers’ purchased products.
  • Describe the purpose of asset hierarchies.
  • Track the replacement of a customer’s asset.

What Are Assets?

An asset in Salesforce represents a specific purchased or installed product. For example, if you sell robots, you can create a Robot product in Salesforce, and then create multiple assets representing the robots you’ve sold. Each customer’s robot would be tracked in its own asset record that’s linked to the Robot product.

So where do assets fit into field service? Well, the products you sell and service likely require visits from service technicians. By tracking your customers’ assets in Salesforce, you can easily view and log each asset’s purchase timeline, maintenance history, and more.

You can associate assets with various Salesforce records in addition to products.
  • Cases
  • Locations, like a customer site or warehouse
  • Maintenance plans
  • Work orders or work order line items
  • Entitlements
  • Service contracts or contract line items

You can also create hierarchies of assets to represent those not-so-simple products. Asset hierarchies help you track related assets, like components of a machine, as a unit. To define hierarchical relationships, use the Parent Asset field and Child Assets related list.

Now that we’ve introduced assets, it’s time to create one!

Housekeeping

Before you get started, let’s take care of a few chores to make sure everything goes smoothly.

  1. Make sure you’ve completed the Field Service Lightning Basics module. This module builds off that one. (The Field Service Center Customization module isn’t required, but we recommend checking it out.)
    Important

    Important

    To follow along in Trailhead, use the same Trailhead Playground you used for the Field Service Lightning Basics module. Using any other org might create problems when you check the challenges. Scroll to the bottom of this page, select your Trailhead playground to the left of the Launch button, and click Launch.

  2. Add the Assets related list to the Account page layout.
    1. From the Object Manager in Setup, click Account, then click Page Layouts.
    2. Click Account Layout.
    3. Click Related Lists.
    4. Drag Assets to the Related Lists section.
    5. Click the wrench icon on the Assets related list.
    6. Use the UP arrow to move the Status field right after Asset Name. Click OK.
    7. Save your changes. If a dialog asks if you want to overwrite users’ related list customizations, click Yes.
  3. Following the same steps, navigate to the Asset object and add the following related lists to the Asset page layout. You don’t need to click the wrench icon on any of the related lists or move any fields.
    • Maintenance Plans
    • Primary Assets
    • Related Assets
    • Work Orders
  4. Add fields to the Work Order page layout.
    1. From the Object Manager in Setup, click Work Order, then click Page Layouts.
    2. Click Work Order Layout.
    3. Drag the Generated from maintenance plan field to the Information section.
    4. If it’s not already there, drag the Work Type field to the Information section.
    5. Save your changes.

Feeling pleasantly productive? Let’s move on to the fun stuff.

Create an Asset

Ursa Major Solar, a supplier of solar energy components, is getting new customers every day. Its solar panel systems are selling like hotcakes, and the company’s founder and CEO, Sita Nagappan-Alvarez, needs a way to keep track of her customers’ products in Salesforce. She hears that assets might be just what she needs.

One of Ursa Major’s new customers, DreamHouse Realty, just purchased a solar panel system for its office. Let’s create an asset to track DreamHouse’s system in Salesforce.

  1. Every asset needs to be linked to an account, a contact, or both. To get started, let’s create an account for DreamHouse Realty.
    1. Click the Accounts tab, then click New. (Don’t see the Accounts tab? From the App Launcher, enter Accounts in the Find an app or item box, then select Accounts.)
    2. Enter the following details:
      • Account Name: DreamHouse Realty
      • Type: Customer - Direct
      New account window with fields completed
    3. Leave the rest of the fields blank, and click Save.
  2. Next, create a product to represent the type of solar panel system that DreamHouse Realty purchased. You don’t have to link every asset to a product, but when you do, it’s easy to check the Assets related list to see which customers have purchased the product.
    1. From the App Launcher, select Products.
    2. Click New and enter the following details.
      • Product Name: Solar Panel System 4000
      • Active: Checked
      New product window with fields completed
    3. Leave the rest of the fields blank, and click Save.
  3. Now, create an asset to represent DreamHouse’s new solar panel system.
    1. From the App Launcher, select Assets.
    2. Click New and enter the following details.
      • Asset Name: Solar Panel System 4000
      • Product: Solar Panel System 4000
      • Account: DreamHouse Realty
      • Install Date: Today’s date
      • Quantity: 1
      • Status: Installed
      New asset window with fields completed
    3. Leave the rest of the fields blank, and click Save.

Asset created! Now put yourself in the stylin’ shoes of an Ursa Major support agent. If someone from DreamHouse calls, you can quickly see which system they purchased (and when) by consulting the Assets related list on the DreamHouse account.

Assets related list on DreamHouse Realty account record

As we mentioned earlier, you can create hierarchies of assets to show how assets are related. To view an asset hierarchy in a nifty collapsible tree grid, click View Asset Hierarchy in the dropdown action menu on any asset record home page in Lightning Experience.

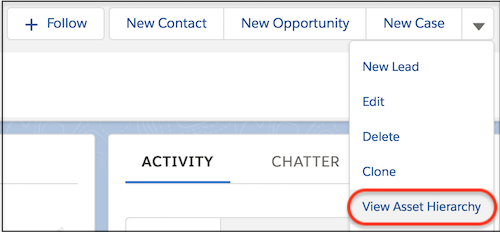

View Asset Hierarchy action in asset dropdown action menu

We imagine you have more rewarding things to do than churn out a family of asset records in your Trailhead Playground, so here’s what the Solar Panel System 4000 asset hierarchy might look like.

Asset hierarchy view showing the Solar Panel System 4000 asset and its 14 child assets

Ready for bigger and better challenges? Let’s learn how to track an asset’s replacement.

Replace an Asset

So, what happens if a customer’s asset needs to be replaced? Whatever the reason, Salesforce has your back! You can add the new asset to the customer’s account in Salesforce, and link the old and new asset for tracking purposes.

Ursa Major Solar has just released a new, more efficient model of its best-selling solar panel system. As a promotion, the company will replace any customer’s system with the new model at half the cost. The folks at DreamHouse Realty have jumped at the opportunity, so let’s find out how to track their replacement in Salesforce.

To show that one asset has replaced another, create an asset relationship with the help of two related lists on asset record home pages.
  • The Primary Assets related list shows assets that replaced the current asset.
  • The Related Assets related list shows assets that the current asset replaced.

Here’s how to show that DreamHouse’s Solar Panel System 4000 was replaced by the new Solar Panel System 6000.
  1. Create an asset to represent the new model.
    1. From the Products tab, create a product record with these details.
      • Product Name: Solar Panel System 6000
      • Active: Checked
    2. From the Assets tab, create an asset record with these details.
      • Asset Name: Solar Panel System 6000
      • Product: Solar Panel System 6000
      • Account: DreamHouse Realty
      • Install Date: Today’s date
      • Quantity: 1
      • Status: Installed
  2. Navigate to the Solar Panel 4000 asset record, and change the Status to Obsolete. Save your changes.
  3. In the Primary Assets related list on the Solar Panel 4000 asset, click New.
  4. In the Asset field, select the Solar Panel System 6000 asset that you just created. The Related Asset field auto-populates to list Solar Panel System 4000.
  5. In the Relationship Type field, select Upgrade.
    New asset relationship window with fields completed
  6. Save your changes.
Tip

Tip

You can get the same result by creating the asset relationship record from the Related Assets related list on the Solar Panel System 6000 record.

Now anyone on the Ursa Major support team can see this asset relationship in two places.
  • The Primary Assets related list on the Solar Panel System 4000 record
  • The Related Assets related list on the Solar Panel System 6000 record
The DreamHouse Realty account record also shows both assets in the Assets related list.
Assets related list on the DreamHouse Realty asset record showing two assets

If this sort of replacement happens regularly, it’s a good idea to create a flow to automate these steps. We’ve walked you through it the old-fashioned way so you understand what’s happening.
