Get Started with Zero Copy Data Federation

Learning Objectives

After completing this unit, you’ll be able to:

• Explain what zero copy is and identify its benefits.

• Explain what zero copy data federation is.

• Identify the differences between zero copy query federation and zero copy file federation.


Before You Start

Before you start this module, consider completing this recommended content.

• Data Cloud-Powered Experiences

• Data Cloud Connectors and Integrations


What Is Zero Copy?

With zero copy, you can bidirectionally connect Data Cloud to external systems, such as data warehouses. It allows you to freely access data from your data source and use it in Data Cloud—such as in identity resolution and segmentation—without duplicating your data. Then you can share data from Data Cloud back to ‌external systems.

Before zero copy, integrating data from external systems was a challenge. You had to physically copy the data into Salesforce, which was time-consuming and resource-intensive. With zero copy, you can access and activate data from external systems, anytime and anywhere.

Zero copy consumes Data Cloud credits. Learn more in Data Cloud Credit Consumption: Quick Look and Billing Considerations for Data Federation.

Zero Copy Capabilities

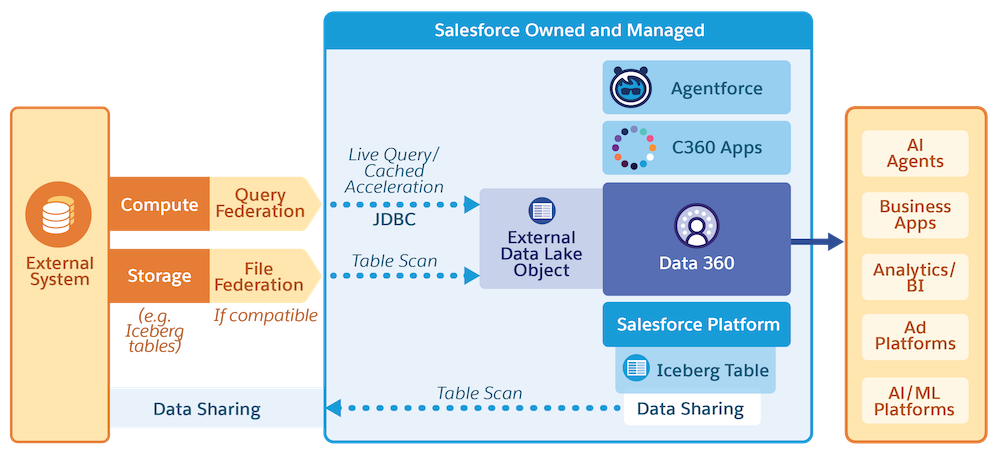

Zero copy consists of two main capabilities—zero copy data federation and zero copy data sharing. Together, they create a two-way communication between Data Cloud and the external system. Data federation gives Data Cloud access to external data, while data sharing gives the external system access to Data Cloud’s data. Data Cloud and the external system mutually query each other’s data.

Benefits of Zero Copy

Here are the key benefits of zero copy in Data Cloud.

• Total data fluidity: With zero copy, you can overlay Data Cloud on top of your existing IT architecture to create a virtual and harmonized operational layer that only accesses data as and when needed.

• Real-time data access: No more waiting for data to sync or update. You get the latest information every time you need it.

• Simplified integration: Zero copy simplifies the integration process. You don’t need to set up complex and costly data pipelines.

• Enhanced governance and compliance: Fewer persistent copies of data means fewer vulnerabilities and security breaches.


Next, explore one of zero copy’s key capabilities: data federation.

Zero Copy Data Federation

Data federation gives you direct access to external data in Data Cloud. To federate data, use a zero-copy connector to connect Data Cloud and the external system. There are two types of zero-copy connectors: query federation and file federation.

Query federation and file federation give you access to different layers of the external system.

• In query federation, Data Cloud sends a query to the external system’s compute layer, or its query engine, which queries the underlying storage layer and returns the relevant records to Data Cloud. External compute is involved. All external systems support query federation.

• In file federation, Data Cloud directly queries the storage layer using its own compute engines. Not all external systems support file federation.


These processes might sound complicated and unfamiliar, so consider the inner workings of query and file federation using a library metaphor.

In the scenarios that follow, the book borrower represents Data Cloud. The clerk represents the external system’s “worker,” or query engine. The library holds high-value and classified books, so it has two rooms: the clerk’s room and the book room.

Scenario 1: Query Federation in the Compute Layer

In this scenario, you can’t access the book room on your own, so you need to request a book from the clerk.

Now look at an interaction. Pay attention to the bolded words.

1. You request the book from the clerk in the clerk’s room. Your request must follow some rules. It must be in the format and language that the clerk understands, and it must be a task the clerk’s willing to do.

2. The clerk parses your request.

3. The clerk goes into the book room, retrieves the book, and gives the book to you.


Next, look at the bolded words in technical terms.

• The book request represents a query from Data Cloud to the external system. Data Cloud asks the external system for a piece of data. This act of querying is called query federation.

• The clerk’s room represents the compute layer. This is where computations, or units of work, are performed.

• The rules represent a query language, such as SQL. You need to formulate the query in the appropriate language for the external system to understand your request.

• The book room represents the storage layer. This is where data from the external system is stored. You learn more about the storage layer in Scenario 2.


Here’s the interaction rephrased in technical terms, between Data Cloud and the external system.

1. You connect Data Cloud and the external system using a query federation connector.

2. Data Cloud queries the external system in the compute layer.

3. The external system’s query engine understands and is willing to execute the query.

4. The query engine executes our query, retrieves the data from the storage layer, and supplies the results to Data Cloud.


With query federation, users in Data Cloud can query data from the external system while staying within the external system’s capabilities.

Scenario 2: File Federation in the Storage Layer

In this scenario, you’re a high-ranking official with specific and limited access to the library. You can borrow a book without going through the clerk and the clerk’s room if the book is within your access permissions.

Here’s how the interaction goes. Pay attention to the bolded words.

1. In the clerk’s room, the owner of the library explicitly gives you permission to enter the book room and gives you a set of rules to follow.

2. You enter the book room.

3. You use your knowledge of the book room layout and quickly find the book you want. You retrieve the book and exit the room.


Now look at the bolded words in technical terms.

• The book room is the storage layer, where the external data files are stored.

• The set of rules represents your access to sections of the storage layer and how you’re allowed to search for and retrieve data.

• The book room layout is the database table format. This is how the files are organized in the storage layer. A common open-table format is Apache Iceberg^TM.

• The book is the data file that you retrieved.


Here’s the interaction rephrased in technical terms, between Data Cloud and the external system.

1. You connect Data Cloud and the external system using a file federation connector.

2. Data Cloud uses its own trusted compute engines to query the storage layer and retrieve the data file.


With file federation, users in Data Cloud can query data from the external system without limitations.

The Zero Copy Partner Network and External Systems

The Zero Copy Partner Network is a collection of organizations that are committed to bidirectional zero-copy integrations with Data Cloud. These organizations support file federation, query federation, and data sharing.

Zero copy is also compatible with external systems outside the partner network.

Query Federation vs File Federation

Now that you know what query federation and file federation are, how do you know which type of connector to use? This table lets you compare the features of each.

File federation is recommended whenever it’s supported.

Now you have knowledge about the different types of data federation. In the next unit, explore some use cases for data federation and learn how to set it up.
