Handle Exceptions and Rollback on Errors

Learning Objectives

After completing this unit, you’ll be able to:

  • Explain how to use a Try Catch Block in Omnistudio for Managed Packages to identify the error if a step fails.
  • Describe when to use Rollback On Error.
  • Explain how to use custom permissions to give data access to a certain team.

New Requirements, New Skills

So far in this module, you've followed Robert as he's done more to make ClearLight happy with their new member portal features. He's also made the solution for the sales team better at working with big transactions.

Robert, our technical architect

He's even updated all the long-running Integration Procedures to make sure they run like well-oiled machines.

The last stage of the ClearLight project is to build an app for the Sales team so they can create new customer accounts and opportunities from mobile devices. To meet this need, Robert wants a low-code API builder to build the REST APIs and host them on Salesforce.

He needs to make sure that:

  • If opportunity creation fails, the transaction rolls back the Account-record creation.
  • If an error occurs, the REST API returns the company-defined error code and message.
  • Only a certain group in the sales team can access the REST APIs.

So, he needs to focus on exception handling and rollback on error.

Let’s follow along as Robert explores how to configure an Integration Procedure and a Data Mapper Load to meet these requirements.

Rollback on Error Configuration

Data Mapper Loads accept data in JSON, XML, or custom input formats and then writes the data to Salesforce objects. When invoked, the Data Mapper Load applies mappings and formulas to the input data to create the output data. It then loads the output data into Salesforce objects according to the mappings.

Here’s Robert’s first use case: When opportunity creation fails, the transaction rolls back the Account-record creation.

To build this capability, he needs to:

  1. Create a Data Mapper Load that supports saving a parent-child relationship.
  2. Configure a Data Mapper Load.
  3. Implement the Rollback On Error option.

Let’s start by configuring a Rollback On Error.

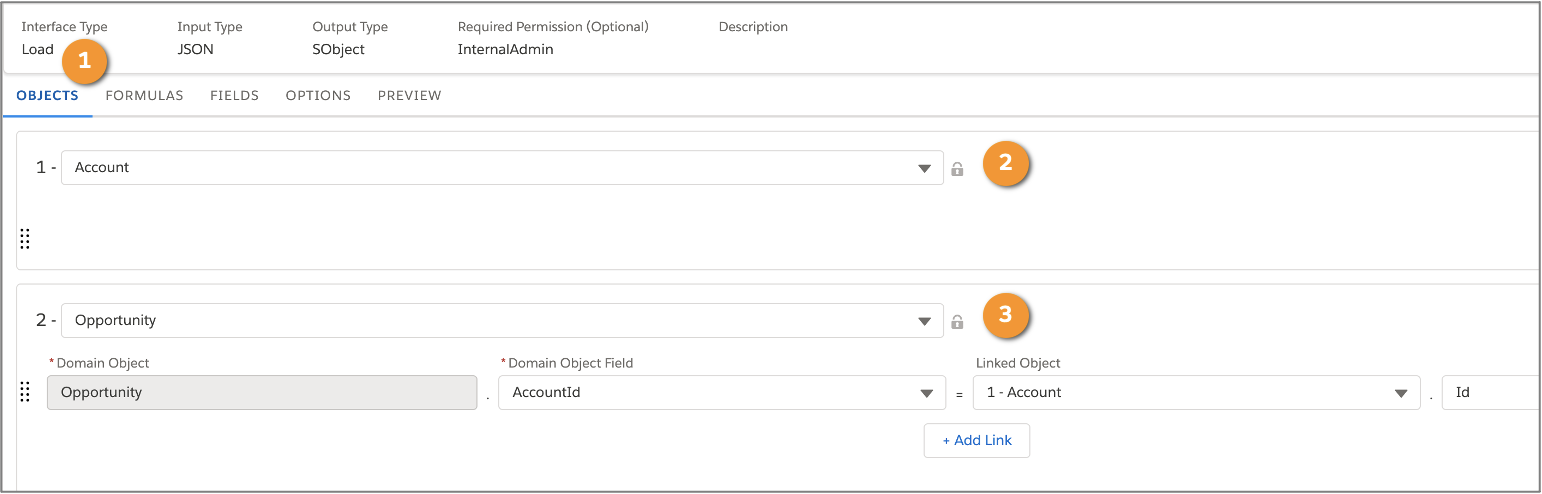

Data Mapper Load showing SObjects

In a Data Mapper Load, select the Objects (1) tab. Specify the Salesforce Objects to update. In this case, you create Account (2) and Opportunity (3) records.

A Data Mapper Load shows all four options.

Select the Options tab (1), and explore the settings.

  • Ignore Errors (2): Continue running the Data Mapper even if an error occurs at a step. For example, if the Account step encounters an error on Account-record creation, the Data Mapper process still moves to the next step to create an Opportunity record.
  • Rollback On Error (3): When an error occurs, the Data Mapper rolls back all updates.
  • Use Assignment Rules (4): When a case is assigned, the Data Mapper sends email notifications to users based on the configured rules.
  • Overwrite Target For All Null Inputs (5): By default, if a value is null, the Data Mapper doesn't create a node for the field in the output JSON.

Select Rollback On Error.

 Now let’s preview what happens.

Preview screen showing an error message

  1. Go to the Preview (1) tab, and execute the Data Mapper Load. You can see the Objects Created (2) section doesn’t show the Opportunity record.
  2. Expand the Errors (3) section to check the error message. In this example, the error indicates the closing date is missing.

Because an error occurred while saving the Opportunity, the transaction rolled back the Account record.

Try Catch Block Configuration

Robert feels good about setting up Rollback On Error, so it’s on to the next requirement. When an error occurs, the API must return the client-defined error code and message. A Try Catch Block lets you try running the steps in the block and then catch the error if a step fails. Robert decides to give it a go.

Let’s see how to set the Error Code and the message in a Try Catch Block.

Integration Procedure with Fail On Block Error enabled

  1. Drag a Try Catch Block (1) onto the Structure Panel.
  2. For Failure Response (2), specify the values to return in the response if the Try Catch Block fails.
  3. Select Add Key/Value Pair.
  4. Set the Key to ErrorCode and the Value to 001.
  5. Add another key/value pair to specify the error message. Set the Key to Message and the Value to Error rollback all transactions.
  6. Add one more key/value pair, and set the Key to Detail and the Value to %CreateAccountAndOpportunity:errors%.
  7. In the Custom Failure Response section, select Fail On Block Error (3).

Let’s see what happens.

Preview tab showing the error code and error message

Go to the Preview (1) tab, and notice the ErrorCode, Message, and Detail are returned in the Response (2) section.

Rollback on Error Activation

The operations that occur inside the transaction boundary represent a unit of operations. All changes are committed to the database only after all operations in the transaction finish running without errors. If an error occurs in any of the intermediate steps with the Rollback On Error option enabled, all database changes are rolled back, and the transaction isn’t committed.

Simply put, when there’s a request from an Omniscript to change, update, or create data in the SObjects, all changes are committed to the database only if the entire request completes successfully.

Now let’s turn our attention back to the Rollback On Error option.

Integration Procedure with Rollback On Error enabled

In the Procedure Configuration (1) in the Structure Panel, select Rollback On Error (2).

Integration Procedure that shows two transactions

In this example, you see the Integration Procedure with two transactions. The first transaction (1) creates and updates the Account, and the second one (2) creates and updates the Opportunity. If both the transactions are created and updated, the Integration Procedure runs with success. Even if just one transaction fails, the other transaction that is created also gets rolled back.

In this example, Try Catch Block Account creation is created and updated successfully. If an error occurs in the Try Catch Block Opportunity creation, the transactions roll back the Account creation.

Integration Procedure REST API

The creation of a Data Mapper and activation of an Integration Procedure create REST API endpoints that support HTTP methods, like GET and POST.

The endpoint URLs to enter in the Workbench follow:

  • Data Mapper’s REST API can be consumed by calling the endpoint: /services/apexrest/{namespace}/v2/DataMapper/{DataMapperName}/
    • For example, a Data Mapper with the Name AccountOpportunityLoad has this endpoint URL: /services/apexrest/vlocity_ins/v2/Data/AccountOpportunityLoad/
  • An Integration Procedure with Type = sample and SubType = CreateOpportunity this endpoint URL: /services/apexrest/vlocity_ins/v1/integrationprocedure/sample_CreateOpportunity/
    • For the Integration Procedure, the endpoint is: /services/apexrest/{namespace}/v1/integrationprocedure/{Type}_{SubType}/

The Workbench showing the list of actions to perform

Run the Integration Procedure in the Workbench (1). Open the Workbench, and select REST Explorer (2). Click Select (3) to continue.

Workbench showing different HTTP methods

Choose an HTTP method (1) to perform on the REST API. Enter the endpoint URL in the input field (2), and select Execute (3) to show the response.

Workbench showing the input and response

After you enter input in the Request Body (1) section, you can view the result in the Raw Response (2) section.

Custom Permissions Configuration

Finally, it’s time for Robert to start working on the last project requirement. He needs to make sure that the REST APIs are only accessible by a certain group. In the example, we explore custom permissions to lock down the AccountOpportunityLoad Data Mapper and OpportunityCreation Integration Procedure.

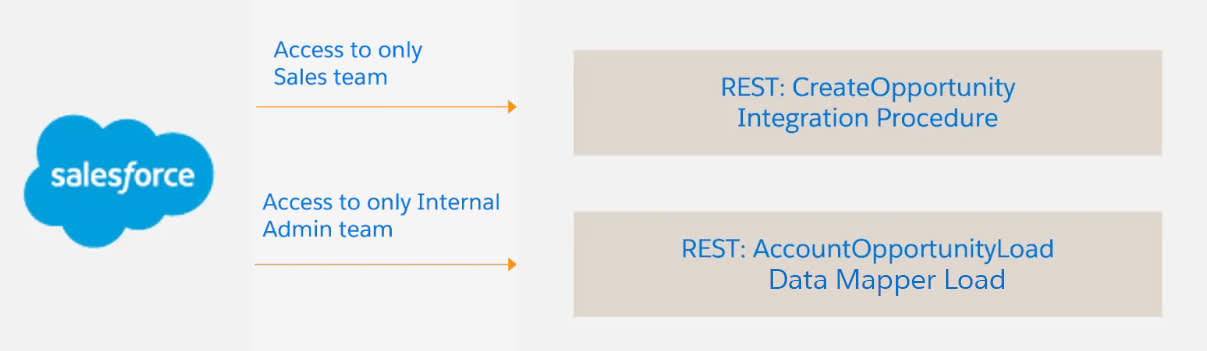

Corresponding diagram of information

The Sales team should only have access to the CreateOpportunity Integration Procedure REST API, and the Internal Admin team should only have access to the AccountOpportunityLoad DataMapperLoad REST API.

It’s important to know that the parent OpportunityCreation Integration Procedure automatically has access to the AccountOpportunity Data Mapper through the Data Mapper Load Action.

Let's learn how to use custom permissions to give record access to a certain team.

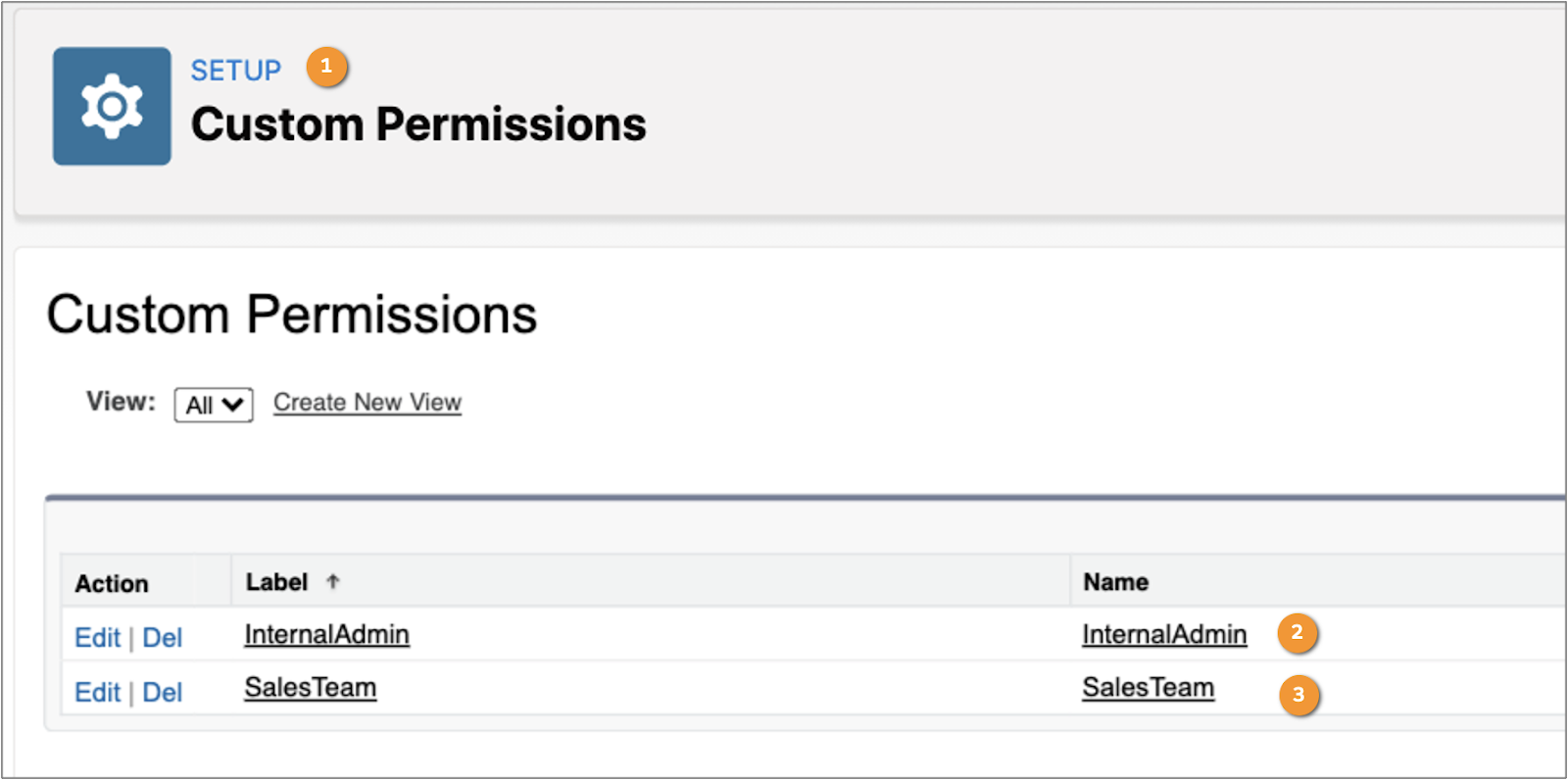

Custom Permissions setting for Internal Admin and Sales teams

  1. Go to Setup, then Custom Permissions (1).
  2. Create a new custom permission for InternalAdmin (2) and SalesTeam (3).
  3. Assign the Custom Permission to the Data Mapper.

Data Mapper Load with the Required Permission setting for Internal Admin

Then create a new Data Mapper (1) and enter InternalAdmin in the Required Permission (2) field.

Now it’s time to configure a Custom Permission for the Sales team. Then assign the permission to the CreateOpportunity Integration Procedure.

Integration Procedure with a Required Permission setting of SalesTeam

  1. Create a new Integration Procedure (1).
  2. Enter SalesTeam in the Required Permission (2) field.

Robert has become an expert in handling errors and exceptions. He is pretty confident about building all the requirements for his project. By following along, you now have a deeper insight into how to use some of the advanced features of Integration Procedures, too.
